CNC Plasma with Oxy Fuel, Oxy Fuel Cutting Machine

CNC Oxyfuel Cutting Machine Manufacturer

Oxy Fuel Cutting Machine Manufacturer Ahmedabad

Established in the year 2010, we are a leading manufacturer of CNC Plasma with Oxy Fuel machines. Since a decade we have a reliable presence in the market owing to the quality products we provide. At Perfect Engineering, we are proud to have a team of dedicated professionals and engineers who follow a proactive and positive approach that has helped us in expanding our business. Having the best expertise and experience in this industry, we are the leading cutting machine manufacturer delivering high quality CNC Plasma with Oxy Fuel machines designed with utmost precision.

Our CNC Plasma with Oxy Fuel machines are technologically advanced and have superior cut quality. Having an extensive understanding of our client's needs, we serve our clients with cutting machines that meet their highest level of satisfaction. As the best CNC Plasma with Oxy Fuel Cutting Machine manufacturer, we combine the best resources and use high grade components to bring you highly robust cutting machines.

Features :

Dual ac servo drive for longitudinal movement
Precision Rack and pinion with planetary gearbox
Fully Enclosed cable drag chain, And Auto height control.
Designed using high quality steel structure
Precisely machined and welded for mounting LM guide Block - 6 Nos. LM Guide Rail12 MTR ways and Rack 26 Nos.
X & Y Cross guideways axis guideways are made of precision LM guide ways of Hi-win Make in Taiwan

Our plasma cutting machines come with a high performing CNC controller. Even ordinary Profile Cutting Machine Operators can utilize this machine for various cutting purposes as it is easy to understand and use. As a noted CNC Cutting Machine manufacturer, we use Automatic Nesting Software for optimizing area that can be utilized from a sheet. Our company ensures that our products are delivered timely to our clients which makes us the best Plasma Cutting Machine Manufacturer in Ahmedabad.

Machine Detail	Information
Effective Cutting Length	7000 ( As Per Requirment Maximum 40 Mtr Length )
Effective Cutting Width	3000
Moving Speed	0-25000 mm/min
Weight	2000 kg
Plasma Source Hypertherm Powermax	45 AMP, 65 AMP, 85 AMP, 105 AMP, 125AMP, Maxpro200AMP
Plasma Cutting Speed	According To The Plasma Source / Varies For OXY-FUEL
Cutting Thickness	According To The Plasma Source /Varies For OXY-FUEL Up to 250mm
CNC System	HYD Controller
Auto Torch Height Controller	Anti-collision with arc voltage with HIS
Programming Software	Most-2d Nesting
Drive Mode	Dual Drive with Servo Motor
Servo System	Panasonic Motors & Drive 5000 RPM Max Rapid Drive Speed 25000mm/Min
Gearbox	SHIMPO/ZD
Rack & Pinion Assembly	YYC Brand Make Taiwan ,25x25 mm cross section with 2 modules HELICAL
Drag Chain	Fully Enclosed Drag Chain For Machine Wiring Safety
Linear Guide	Hi win Make Taiwan / THK brand Make in Japan
Air Compressor	5 HP AIR COMPRESSOR Indo Air

Standard 38 Shapes Library.
High Resolution Large & Bright TFT LCD of 10" SCREEN with full color interactive graphic display.
Min 256MB Storage space.
Easy recoveries by the inconvenience occurred due to power failure.
Feather touches key board for operations.
Facility of USB Disk to read/Write Program and upgrade the software.

Without Cutting table

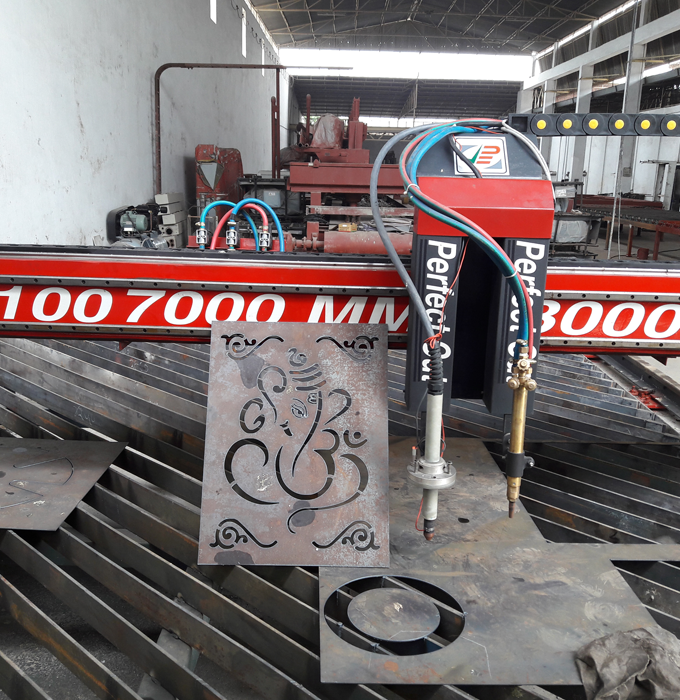

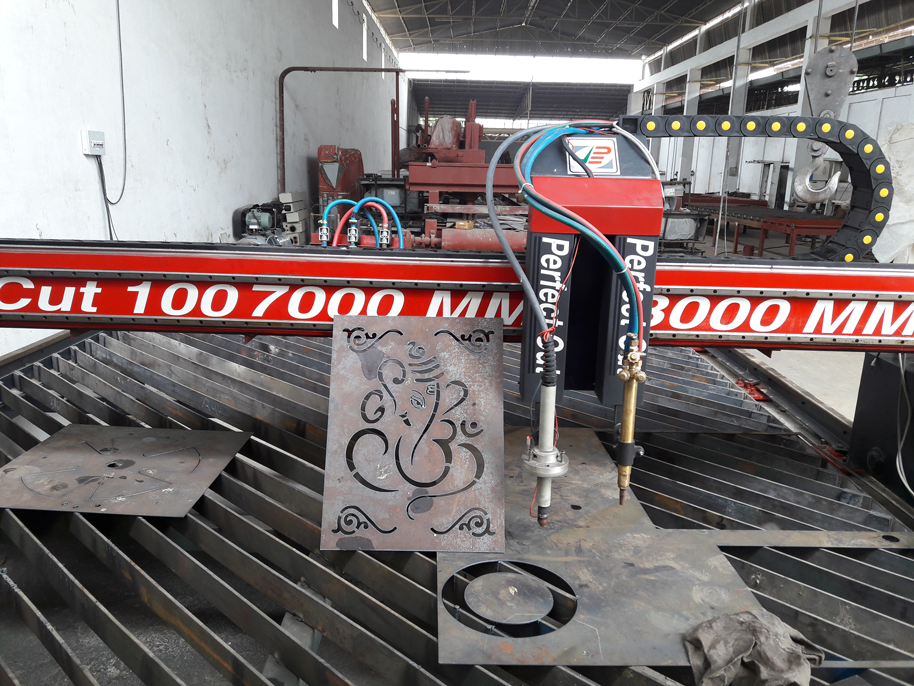

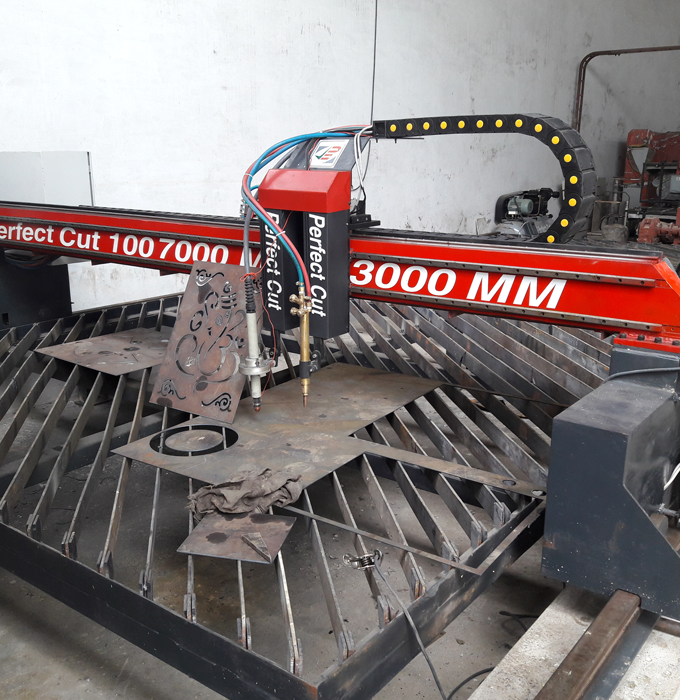

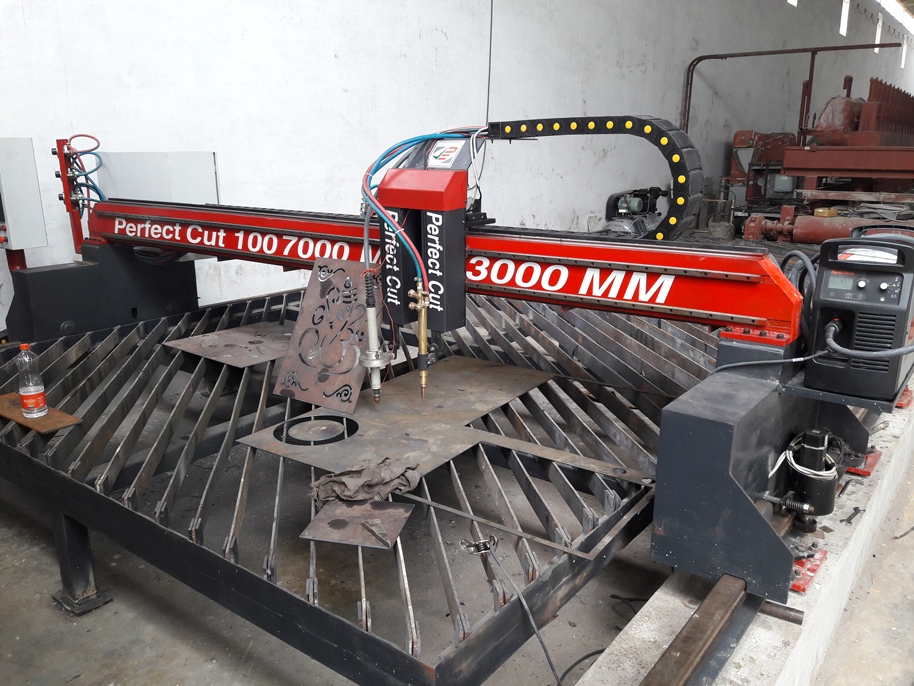

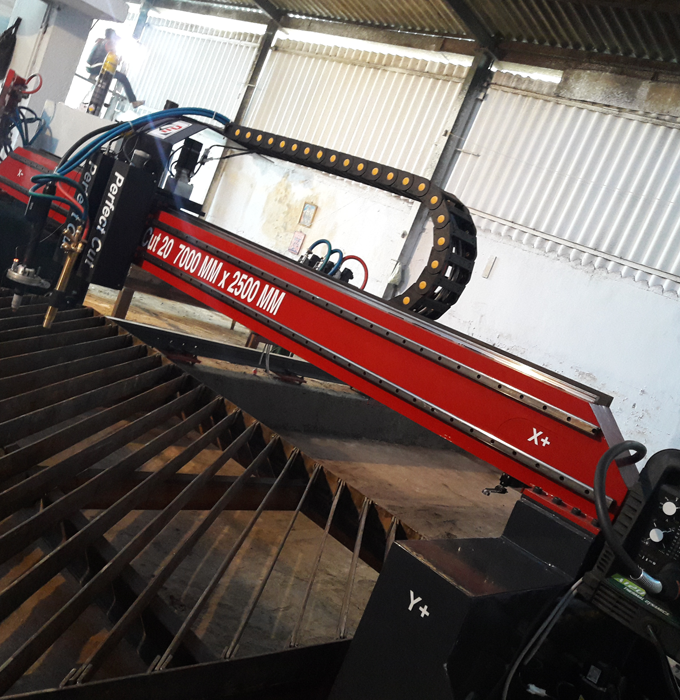

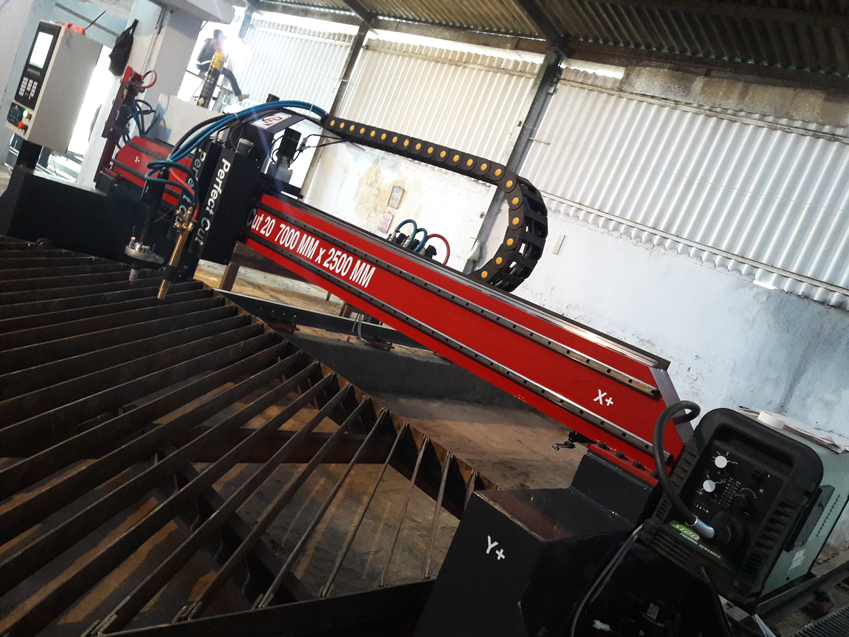

CNC Plasma With Oxy Fuel Perfect Engineering
