Plasma Cutting Machine Manufacturer Ahmedabad

Plasma Cutting Machine Manufacturer Ahmedabad

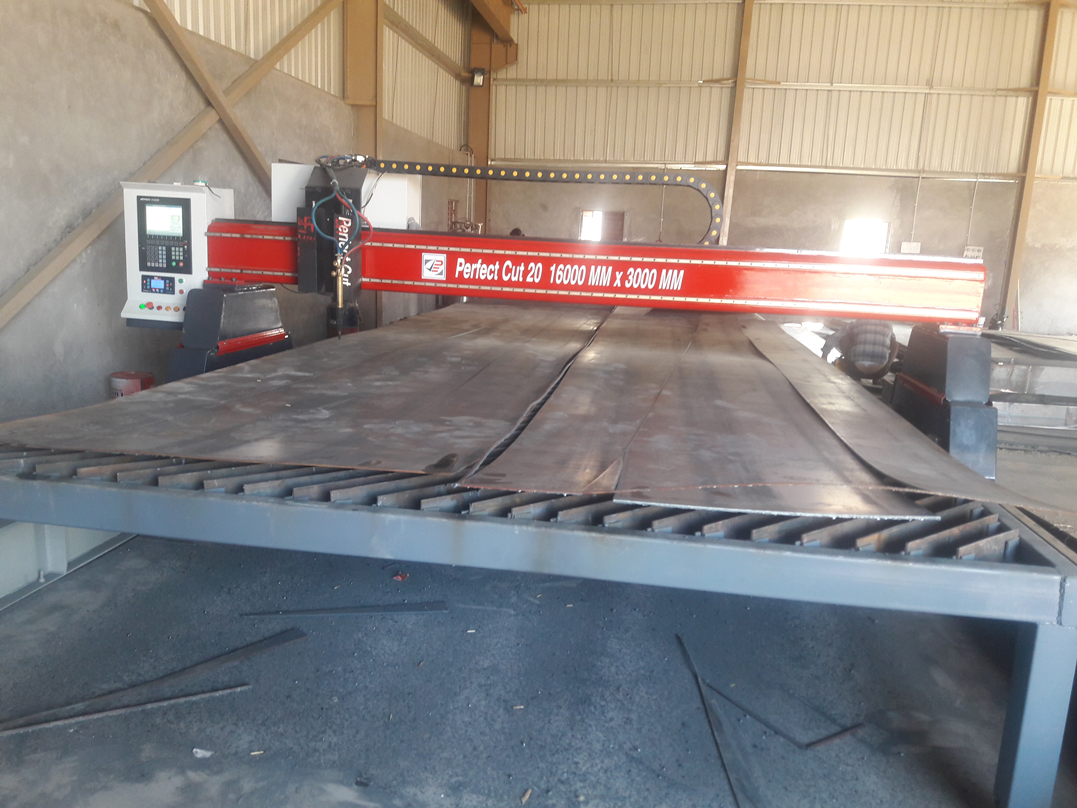

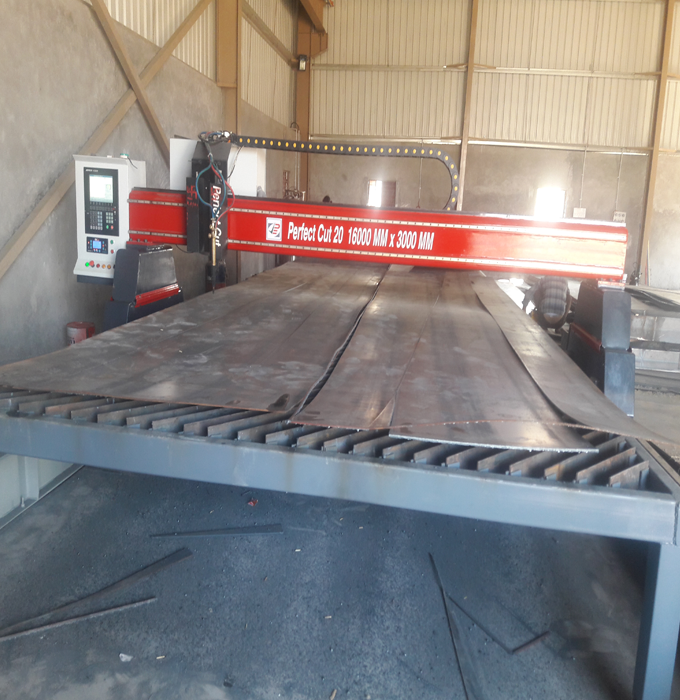

Perfect Engineering is proud to bring you CNC Plasma Cutting Machine with Gantry type structure. This machine comes with dual drive mode to offer industrial cutting flexibility to our clients. With our prime focus on quality and customer satisfaction, we have become a leading CNC Plasma Cutting Machine Manufacturer in India.

The Gantry Type Plasma Cutting Machine has a simple design and is the best option for all kinds of basic material cutting tasks. It is ideal for middle sized and large scale engineering businesses, capable of cutting metal sheets of various thicknesses to precision. The complete steel structure and fine quality components make this CNC Plasma Cutting Machine extremely durable and efficient.

Features :

Dual drive is suitable for Plasma as well as Oxy Fuel cutting
Reliable and consistent performance with low maintenance
Oxyfuel Torchs Attachment(Optional)
Upgraded software enhances performance and reduces labour intensity
AC Servo motor is mounted with high precision backlash free planetary gearbox.
Nesting software to minimise plate wastage
Precisely machined and welded for mounting

As the Plasma Cutting Machine Manufacturer Ahmedabad we take great pride in our entire range of CNC Cutting Machines. We are determined to bring your finest quality machines at a competitive price.

Machine Detail	Information
Effective Cutting Length	7000 ( As Per Requirment Maximum 40 Mtr Length )
Effective Cutting Width	3000
Moving Speed	Plasma - 0-25000 mm/min OXY FUEL 0-5000 mm/min
Weight	2000 KG
Plasma Source Hypertherm Powermax	45AMP, 65AMP,85AMP,105AMP,125AMP, Maxpro200AMP
PlasmaCutting Speed	According To The Plasma Source
Cutting Thickness	According To The Plasma Source
CNC System	HYD Controller
Auto Torch Height Controller	Anti-collision with arc voltage with HIS
Programming Software	MOST-2D NESTING
Drive Mode	Dual Drive with Servo Motor
Servo System	Panasonic Motors & Drive 5000 RPM Max Rapid Drive Speed 25000mm/Min
Gearbox	SHIMPO/ZD
Rack & Pinion Assembly	YYC Brand Make Taiwan 25x25 mm cross section with 2 modules HELICAL
Drag Chain	Fully Enclosed Drag Chain For Machine Wiring Safety
Linear Guide	Hi win Make Taiwan / THK brand Make Japan
Air Compressor	5 HP AIR COMPRESSOR Indo Air

Standard 38 Shapes Library.
High Resolution Large & Bright TFT LCD of 10" SCREEN with full color interactive graphic display.
Min 256MB Storage space.
Easy recoveries by the inconvenience occurred due to power failure.
Feather touches key board for operations.
Facility of USB Disk to read/Write Program and upgrade the software.

Without Cutting table

CNC Plasma Cutting Machine (Gantry) Perfect Engineering
