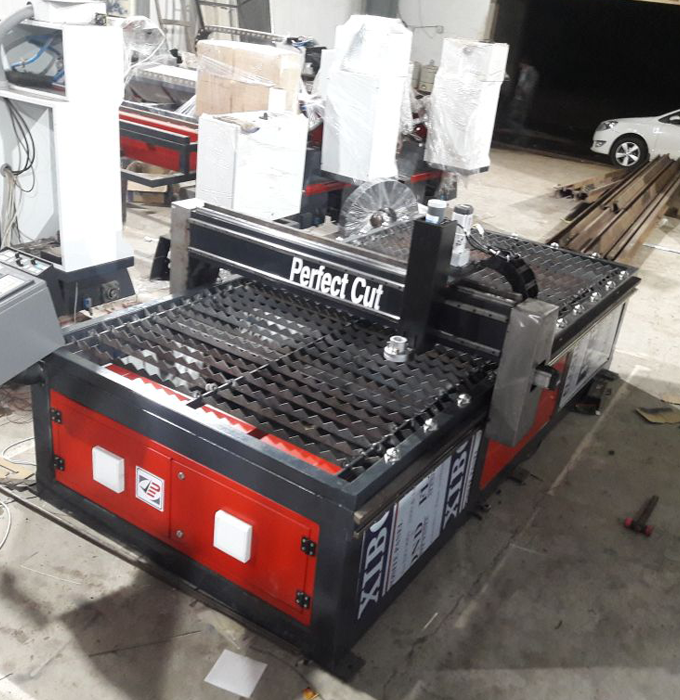

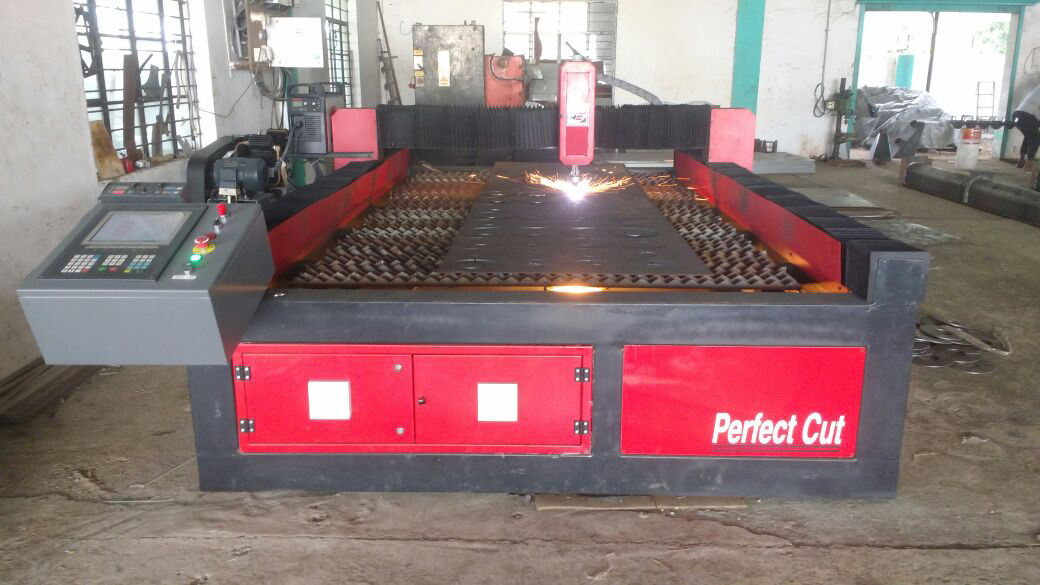

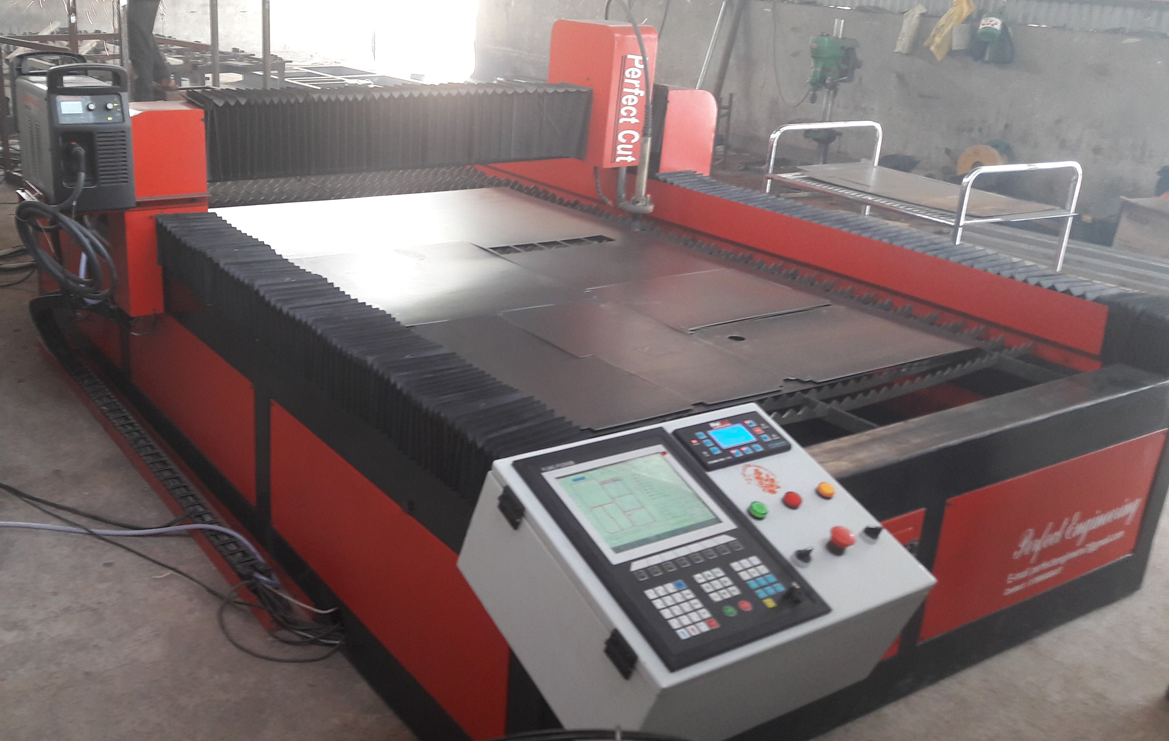

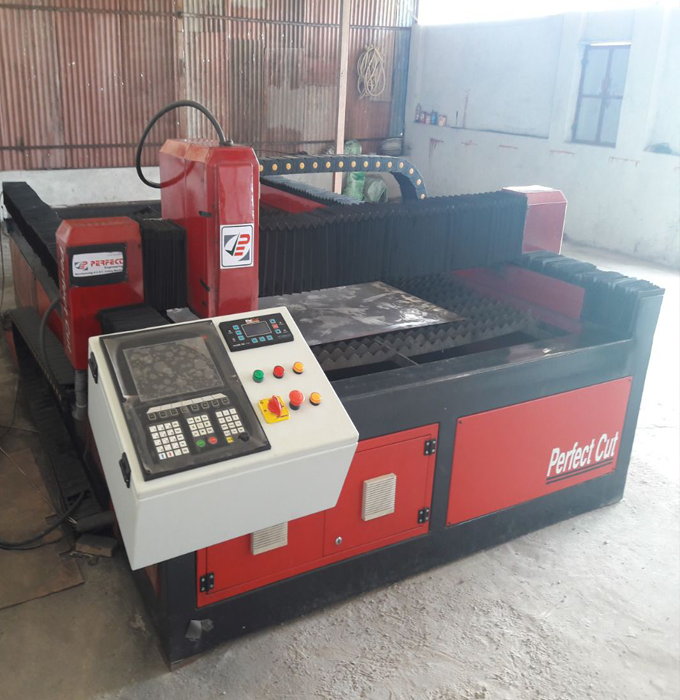

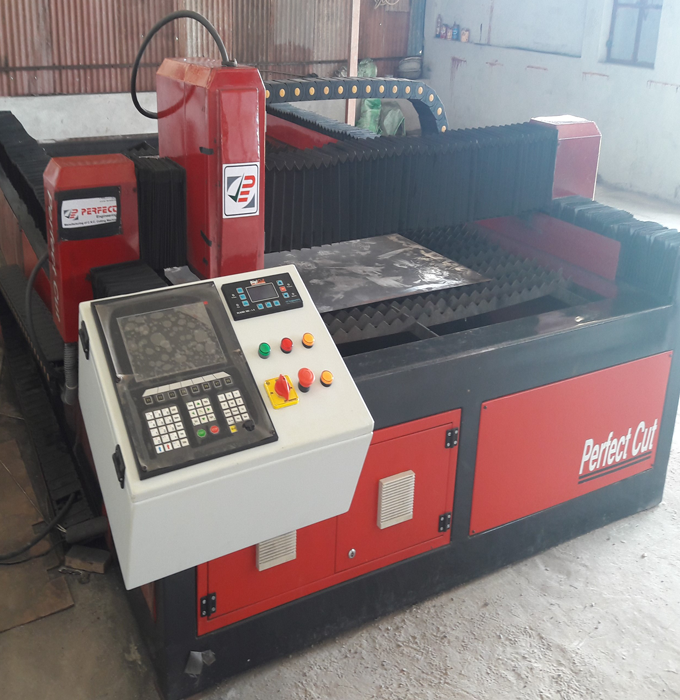

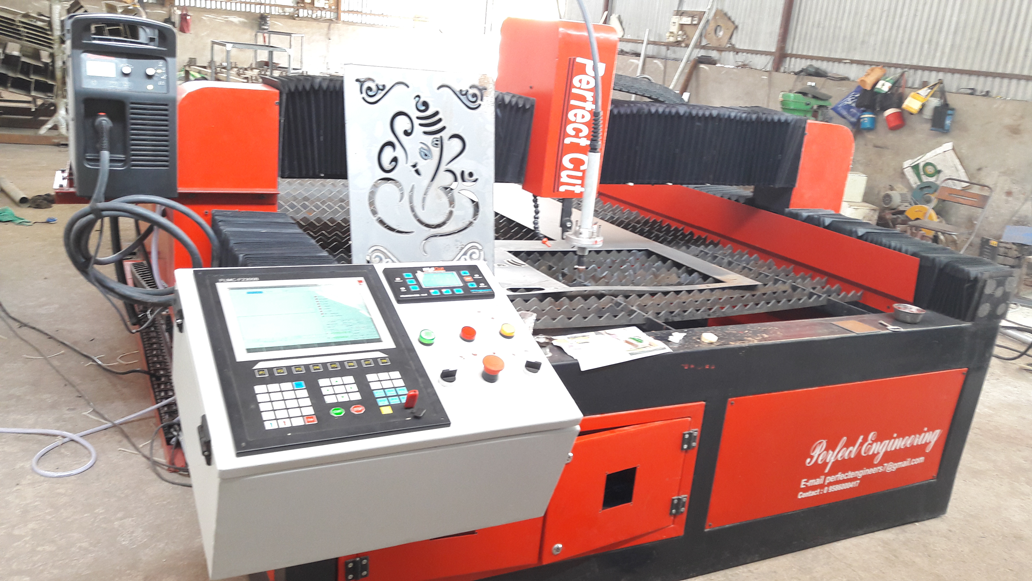

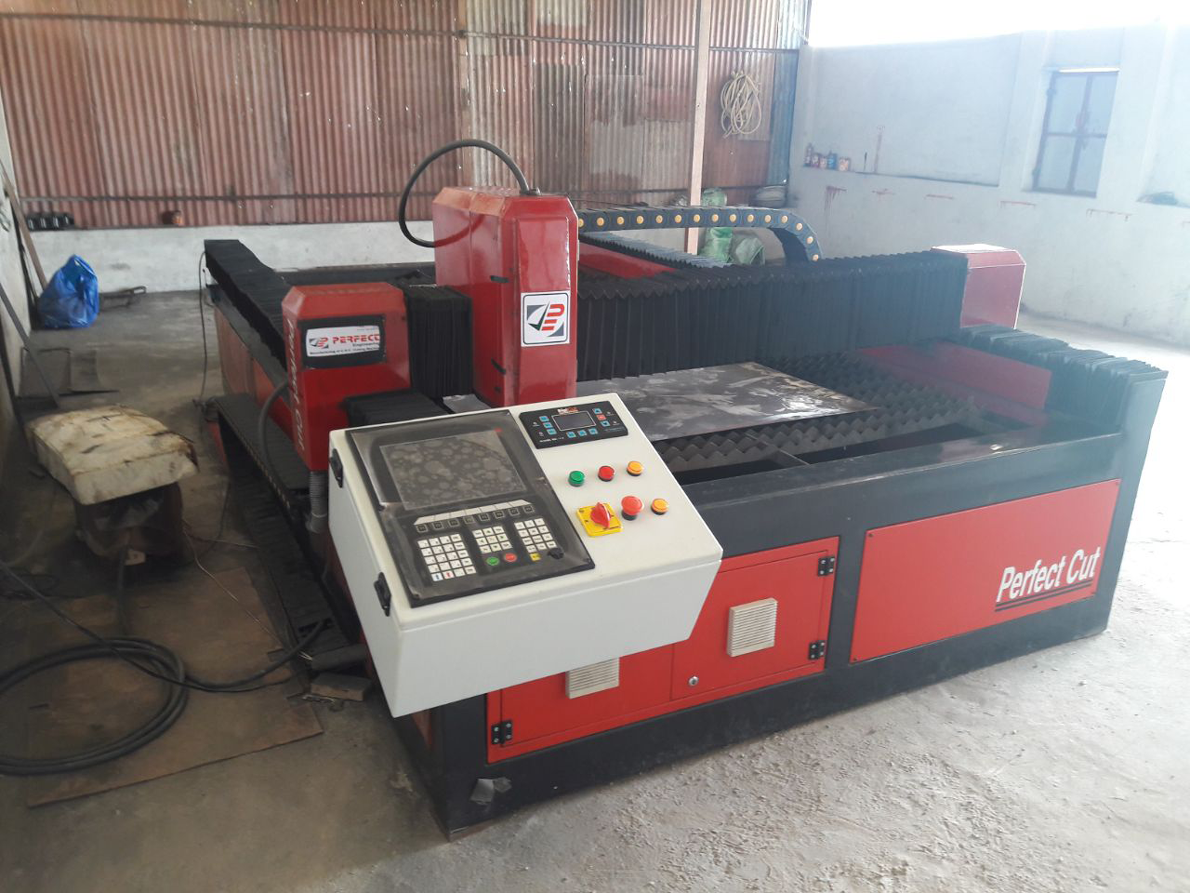

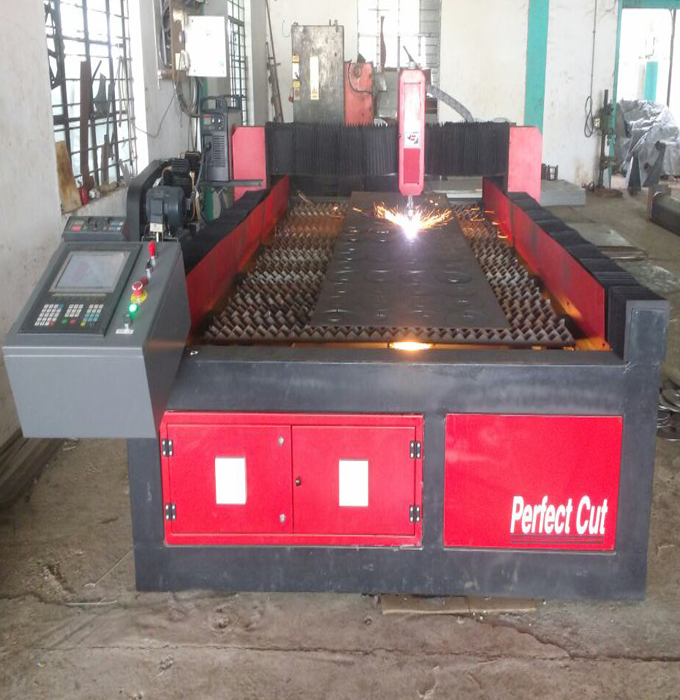

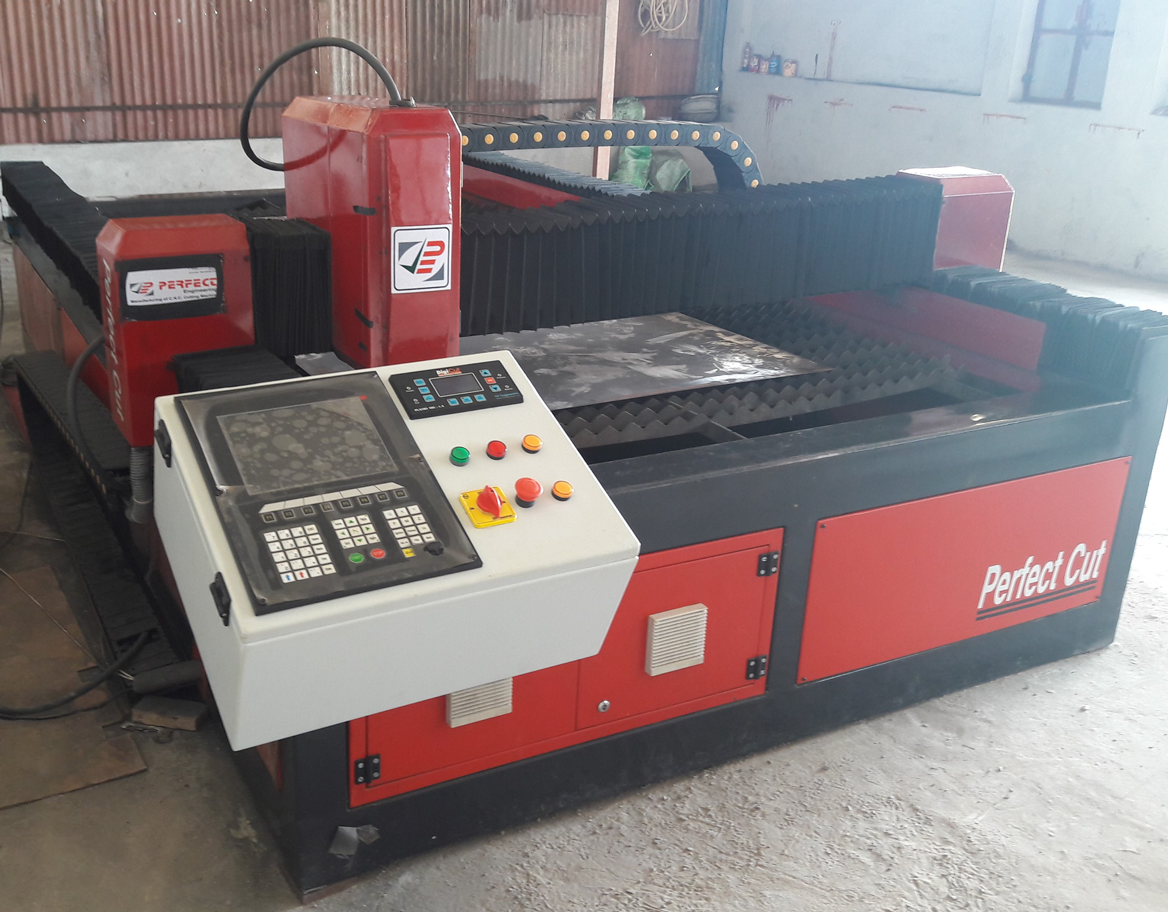

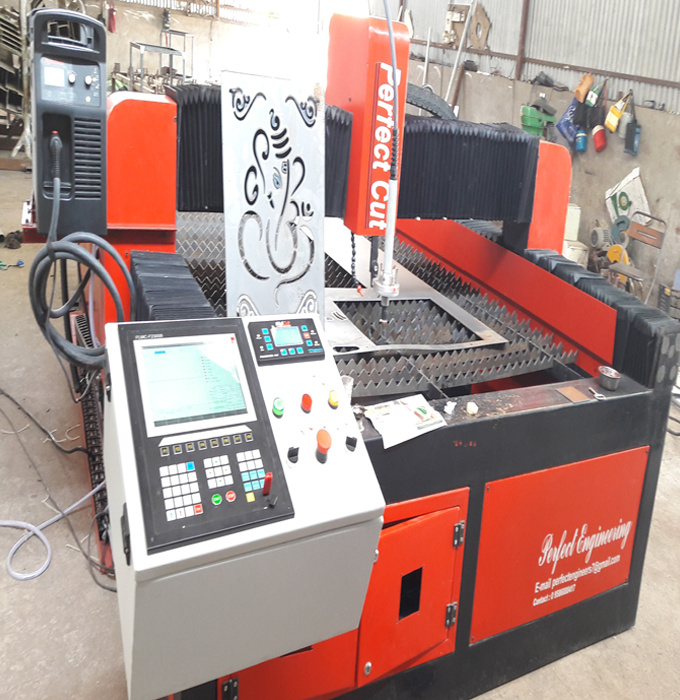

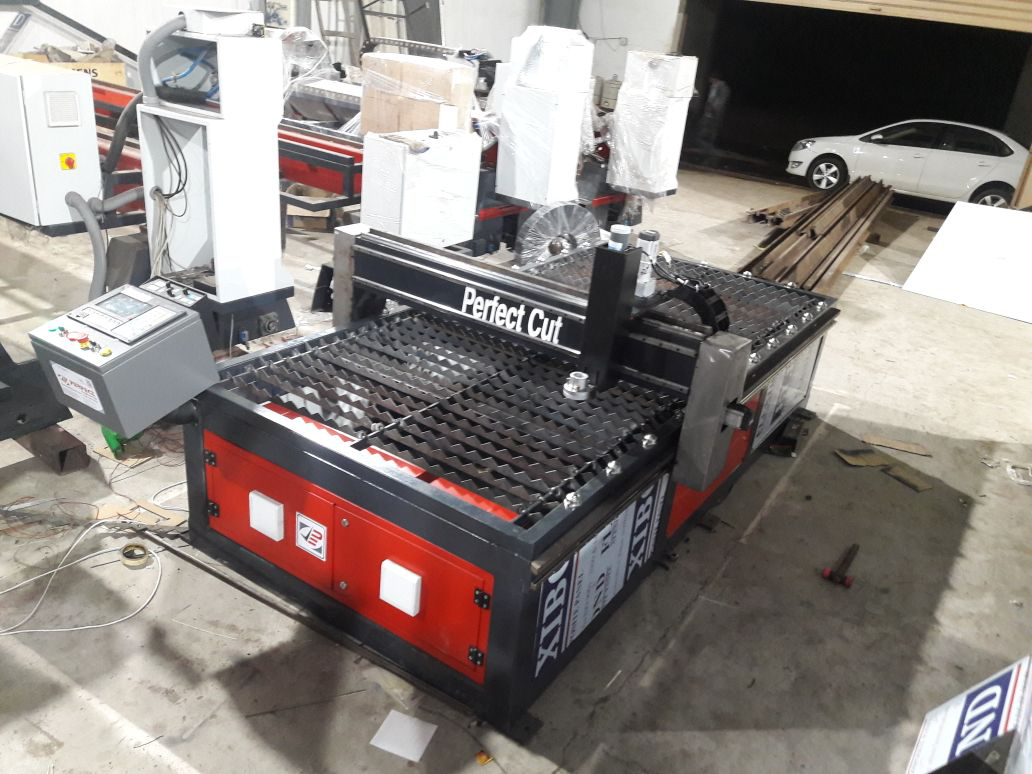

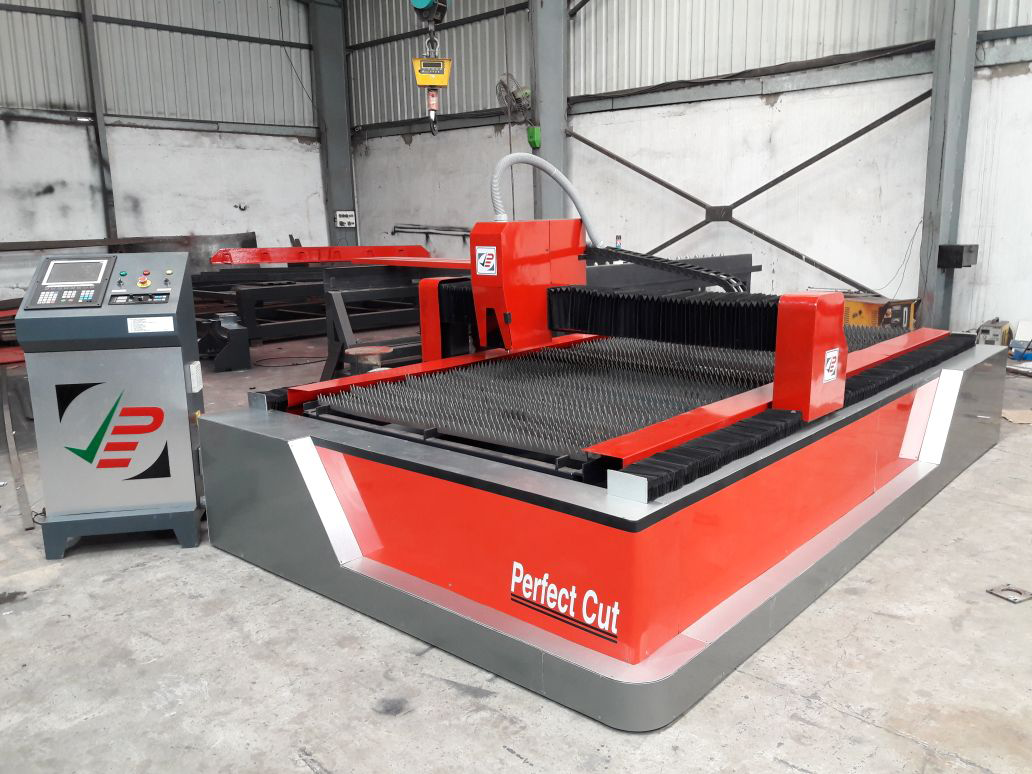

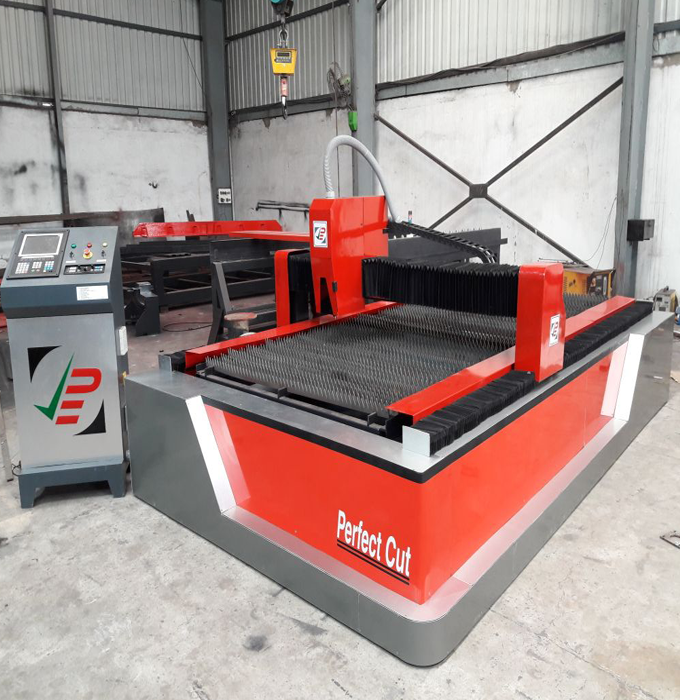

CNC Plasma Table Top, CNC Plasma Cutting Machine

Plasma Cutting Machine Manufacturer Ahmedabad

Perfect Engineering is an established enterprise engaged in manufacturing quality CNC Plasma Cutting Machines table top. With a team of dedicated professionals and engineers having the best expertise in this industry, we shape up and manufacture each product in an intricate manner and with utmost precision. We have been operating in this industry for nearly a decade and have an extensive understanding of our client's needs. As the leading CNC Plasma Cutting Machine table top, we combine the best resources and use high grade components to bring you cutting edge machines at a highly competitive price.

Made of high quality steel structure, the CNC Plasma Cutting Machine table top is highly useful for cutting metals for a variety of purposes. Our clients highly appreciate us for our fast paced, advanced and highly innovative approach. This computerised automatic machine delivers precision at high speed.

Features :

Table top designed structure
Precisely machined and welded for mounting
The CNC controller is easy to understand and operate.
AC Servo motor is mounted with high precision backlash free planetary gearbox
Nesting software to minimise plate wastage
Uniform gap between the torch and the sheet to avoid collision.
Customizable laser head, cutting speed and thickness. Precisely machined and welded for mounting

As a noted CNC Plasma Cutting Machine Table Top Manufacturers, we follow a holistic approach and always deliver customers what they want. We are widely known for more responsiveness, timely deliver, highest quality and best services which makes us the best Plasma Cutting Machine Manufacturer in Ahmedabad. Our plasma cutting machine is very easy to use and operate. Even ordinary Profile Cutting Machine Operators can be trained on it in a matter of few hours.

Technical Data Of Machine
Technical Data Of Controller

Machine Detail	Information
Effective Cutting Length	3000 As Per Requirment Maximum 4 Mtr Length
Effective Cutting Width	1500 As Per Requirment Maximum 2 Mtr Width
Moving Speed	0-25000 mm/min
Weight	2000 KG
Plasma Source Hypertherm Powermax	45 AMP, 65 AMP, 85 AMP, 105 AMP, 125 AMP, Maxpro200AMP
Plasma Cutting Speed	According To The Plasma Source
Cutting Thickness	According To Plasma Source /Oxy Fuel Cutting Up to 250mm
CNC System	HYD Controller
Auto Torch Height Controler	Anti-collision with arc voltage with HIS
Programming Software	Most-2d Nesting
Drive Mode	Dual Drive with Servo Motor
Servo System	Panasonic Motors & Drive 5000 RPM Max Rapid Drive Speed 25000mm/Min
Gearbox	SHIMPO/ZD
Rack & Pinion Assembly	YYC Brand Make Taiwan ,25x25 mm cross section with 2 modules HELICAL
Drag Chain	Fully Enclosed Drag Chain For Machine Wiring Safety
Linear Guide	Hi win Make Taiwan / THK brand Make Japan
Air Compressor	5 HP AIR COMPRESSOR Indo Air

Standard 38 Shapes Library.
High Resolution Large & Bright TFT LCD of 10" SCREEN with full color interactive graphic display.
Min 256MB Storage space.
Easy recoveries by the inconvenience occurred due to power failure.
Feather touches key board for operations.
Facility of USB Disk to read/Write Program and upgrade the software.
