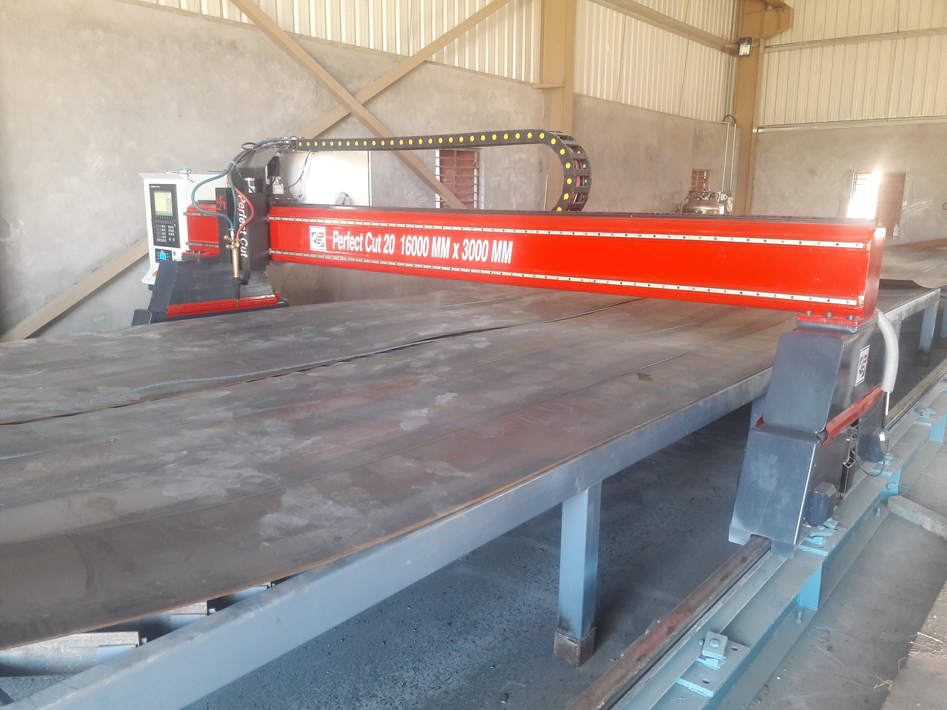

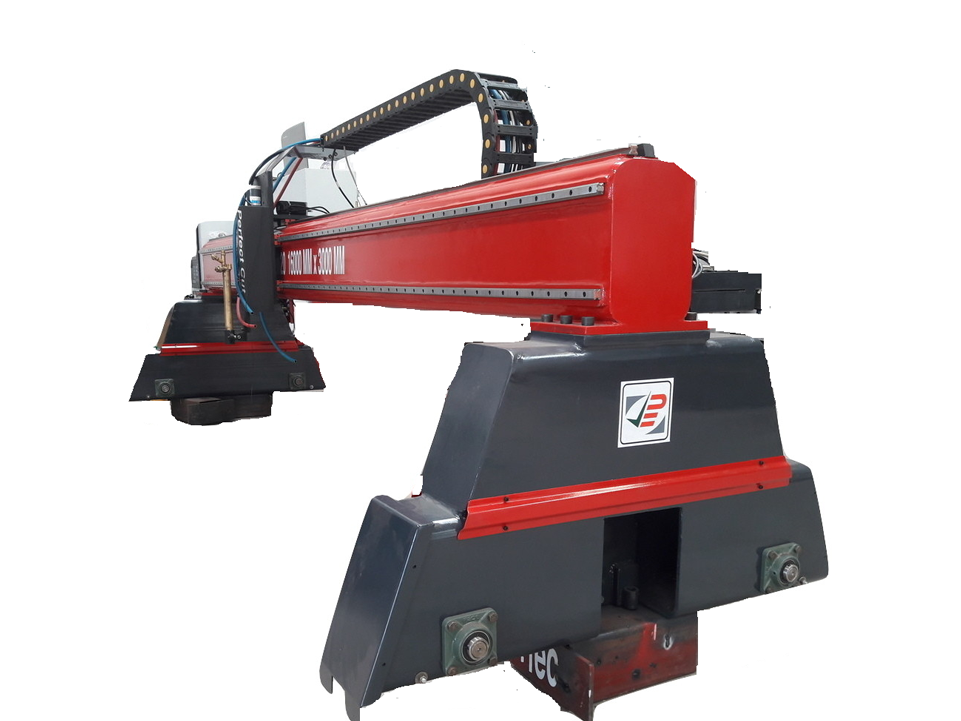

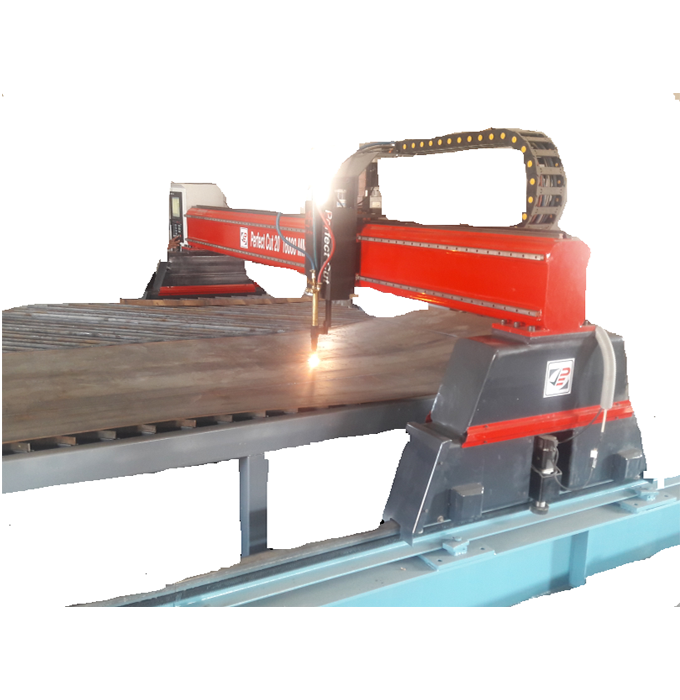

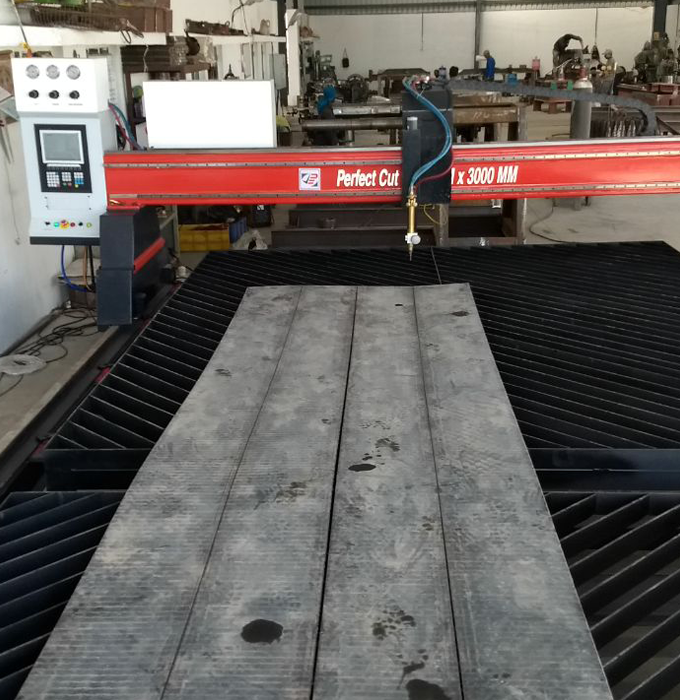

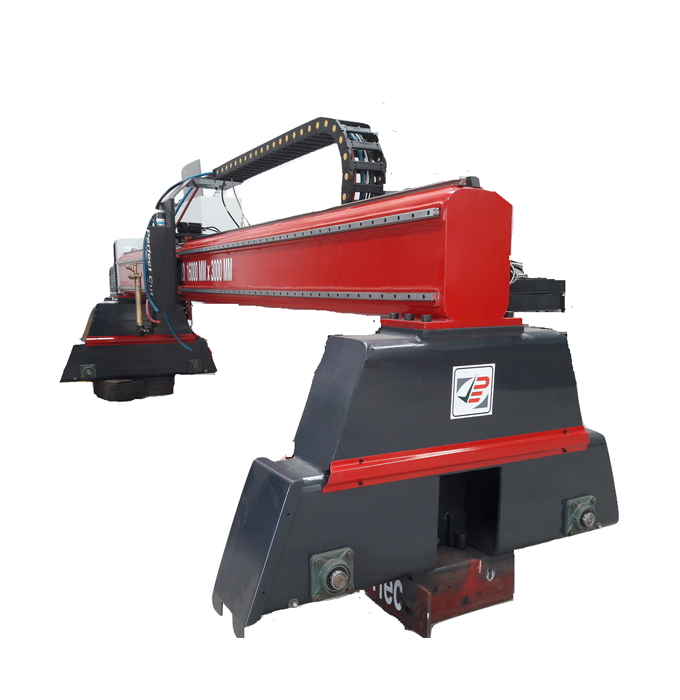

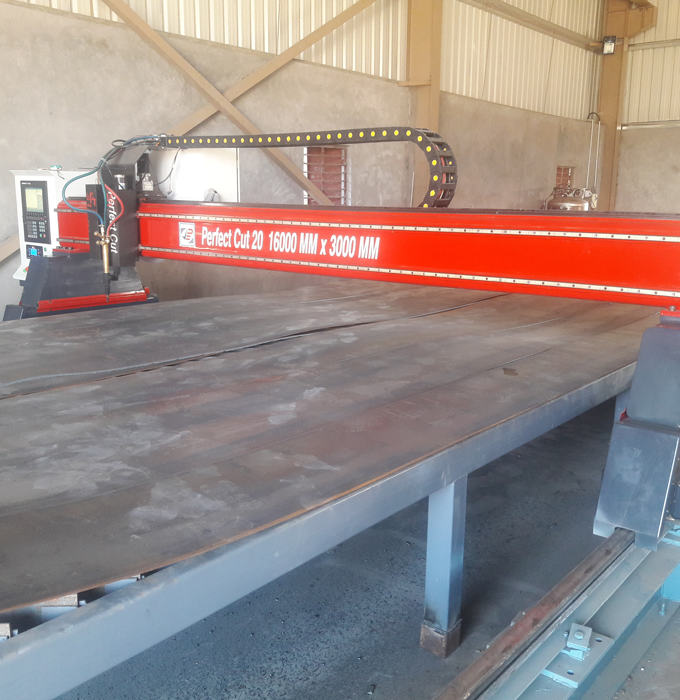

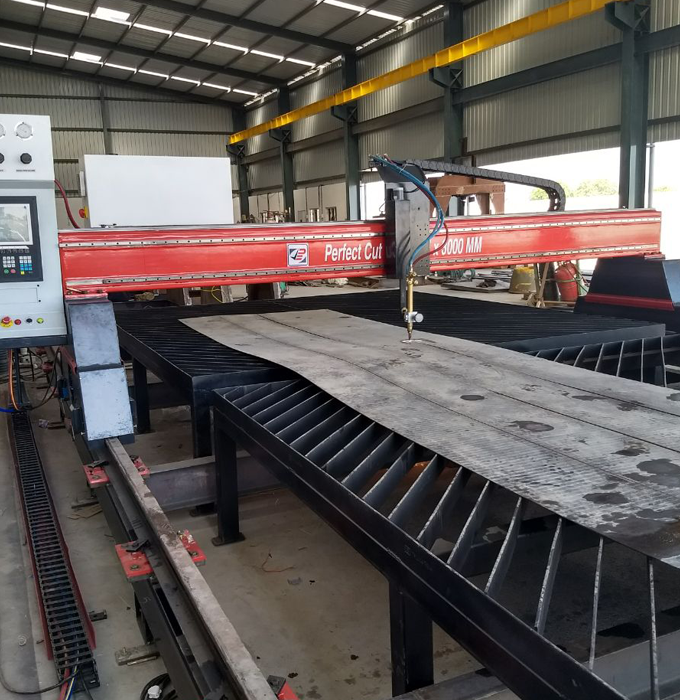

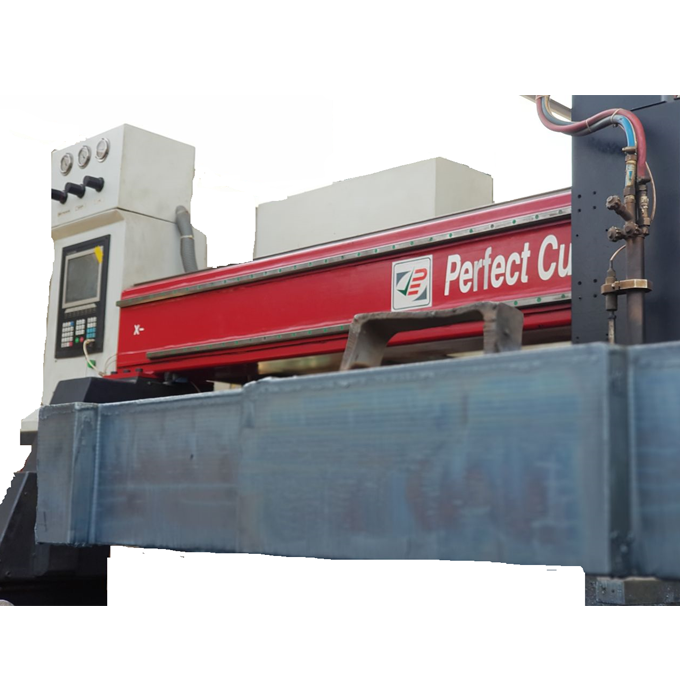

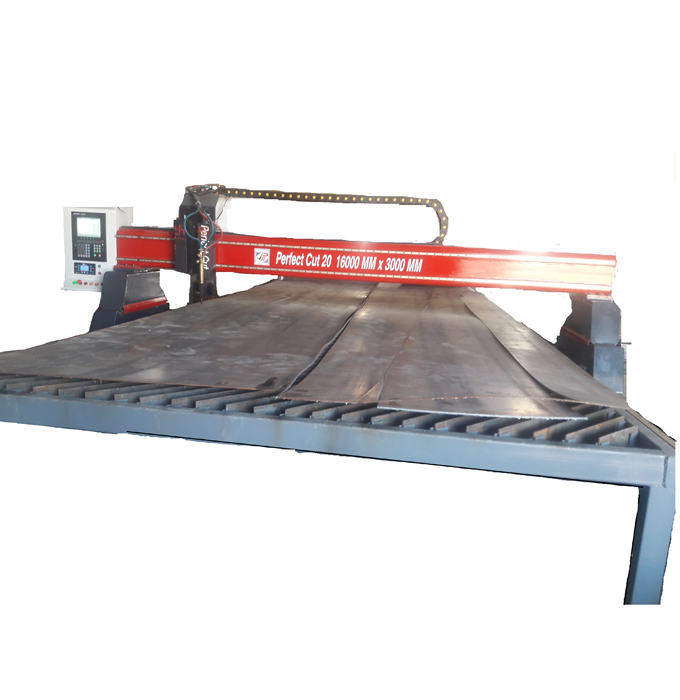

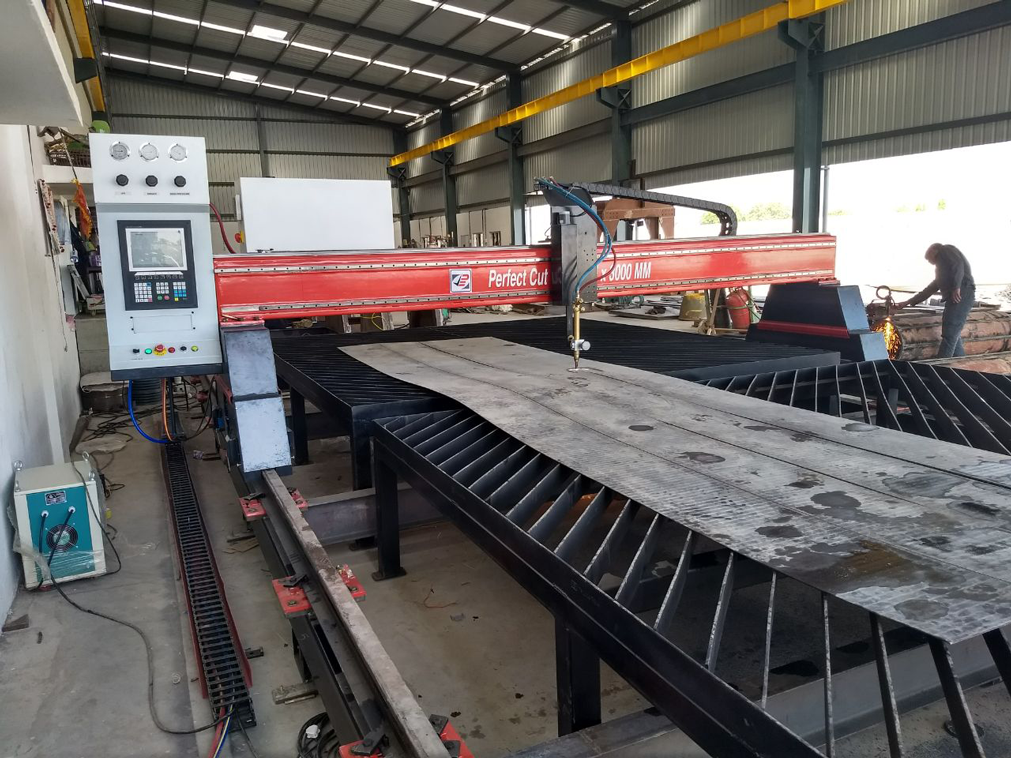

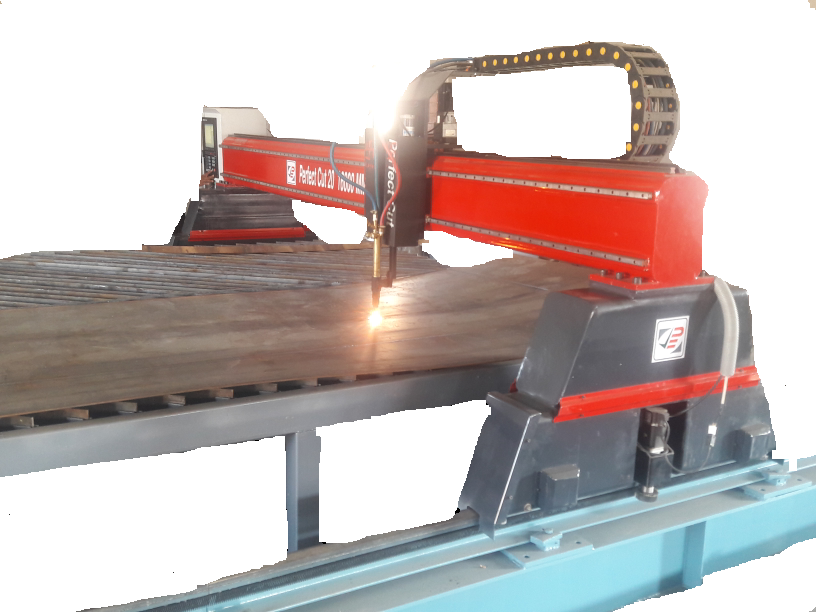

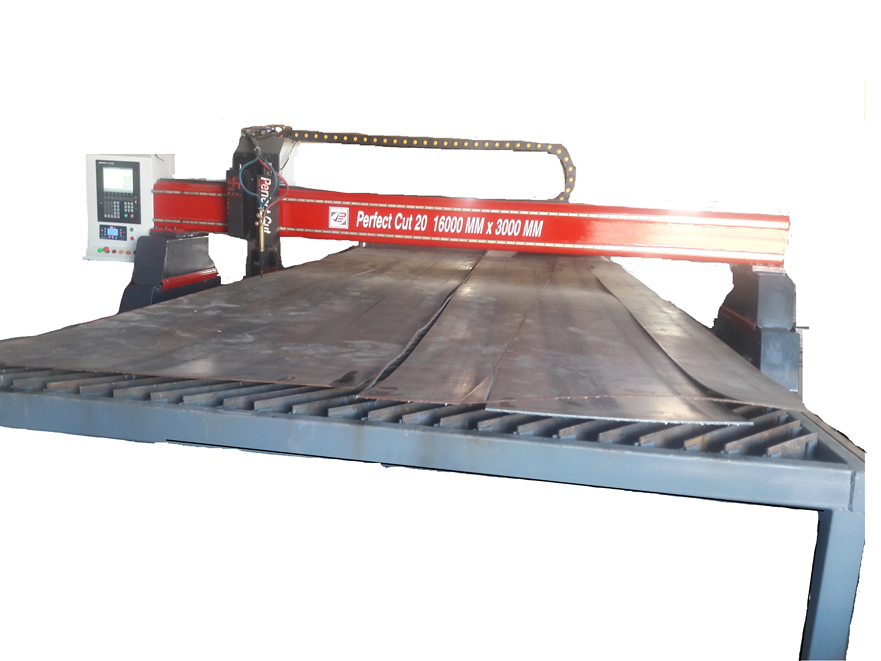

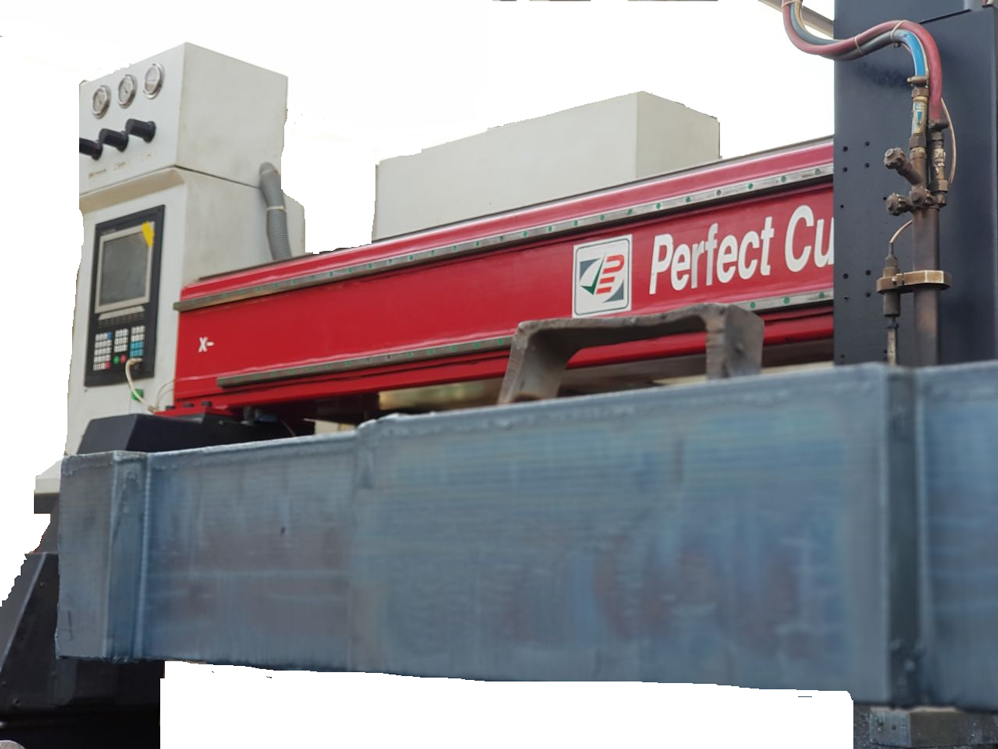

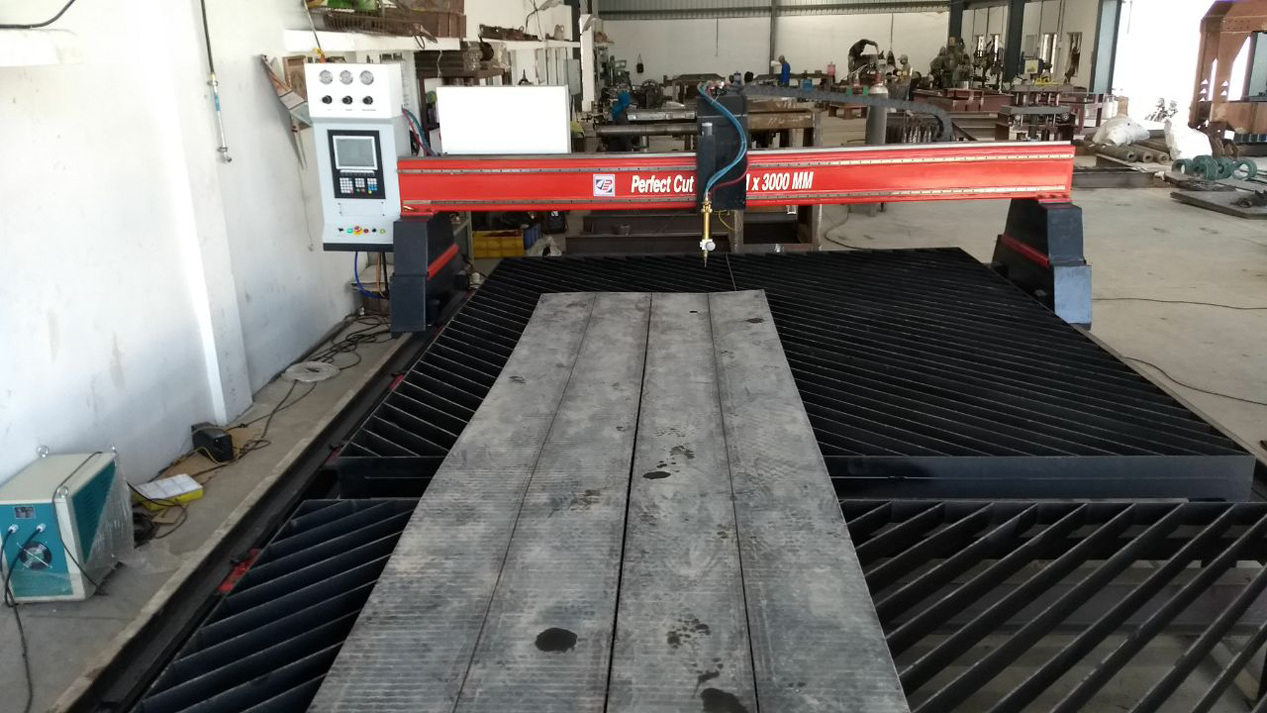

Perfect Engineering brings you the most durable and economical solution for all your metal cutting needs. The CNC Oxyfuel Cutting Machine is a basic design which is extensively used in the metal industry. This Oxy Fuel Cutting Machine can cut all kinds of mild and low allow metals to precision. The robust design and reliable functioning of this machine is appreciated by all our clients.
This CNC Plasma with Oxy Fuel machine cuts metal sheets based on a combustion process using oxygen/fuel gas flame. As the operators will be handling extreme heat, we ensure that the drain chain is fully ensured for safety. As the trusted CNC Oxyfuel Cutting Machine Manufacturer, we source our raw materials and components from trusted vendors to supply top quality machines to our clients.
Features :
As the leading Oxy Fuel Cutting Machine Manufacturer Ahmedabad we strive to bring you machines that offer the latest technology at the best in the market price. Our CNC Oxyfuel Cutting Machine can be easily integrated into your existing production line to enhance efficiency and production.
| Machine Detail | Information |
|---|---|
| Effective Cutting Length | 7000 ( As Per Requirment Maximum 40 Mtr Length ) |
| Effective Cutting Width | 3000 |
| Moving Speed | 0-8000 mm/min |
| Weight | 2000 KG |
| Cutting Speed | 0-600mm/Min |
| Cutting Thickness | OXY-FUEL Cutting Up to 250mm |
| CNC System | HYD Controller |
| Auto Torch Height Controller | Anti-collision with arc voltage with HIS |
| Programming Software | MOST-2D NESTING |
| Drive Mode | Dual Drive with Servo Motor |
| Servo System | Panasonic Motors & Drive 5000 RPM Max Make Japan Rapid Drive Speed 25000mm/Min |
| Gearbox | SHIMPO/ZD |
| Rack & Pinion Assembly | YYC Brand Make Taiwan ,25x25 mm cross section with 2 modules HELICAL |
| Drag Chain | Fully Enclosed Drag Chain For Machine Wiring Safety |
| Linear Guide | Hi win Make Taiwan /THK brand Make in Japan |
