Perfect Engineering is a fast growing enterprise engaged in manufacturing advanced CNC Laser Cutting Machine. We have been operating in this industry for nearly a decade and have an extensive understanding of the needs of our clients. As the Laser Cutting Machine Manufacturers we aim to bring you cutting edge technology at a highly competitive price.

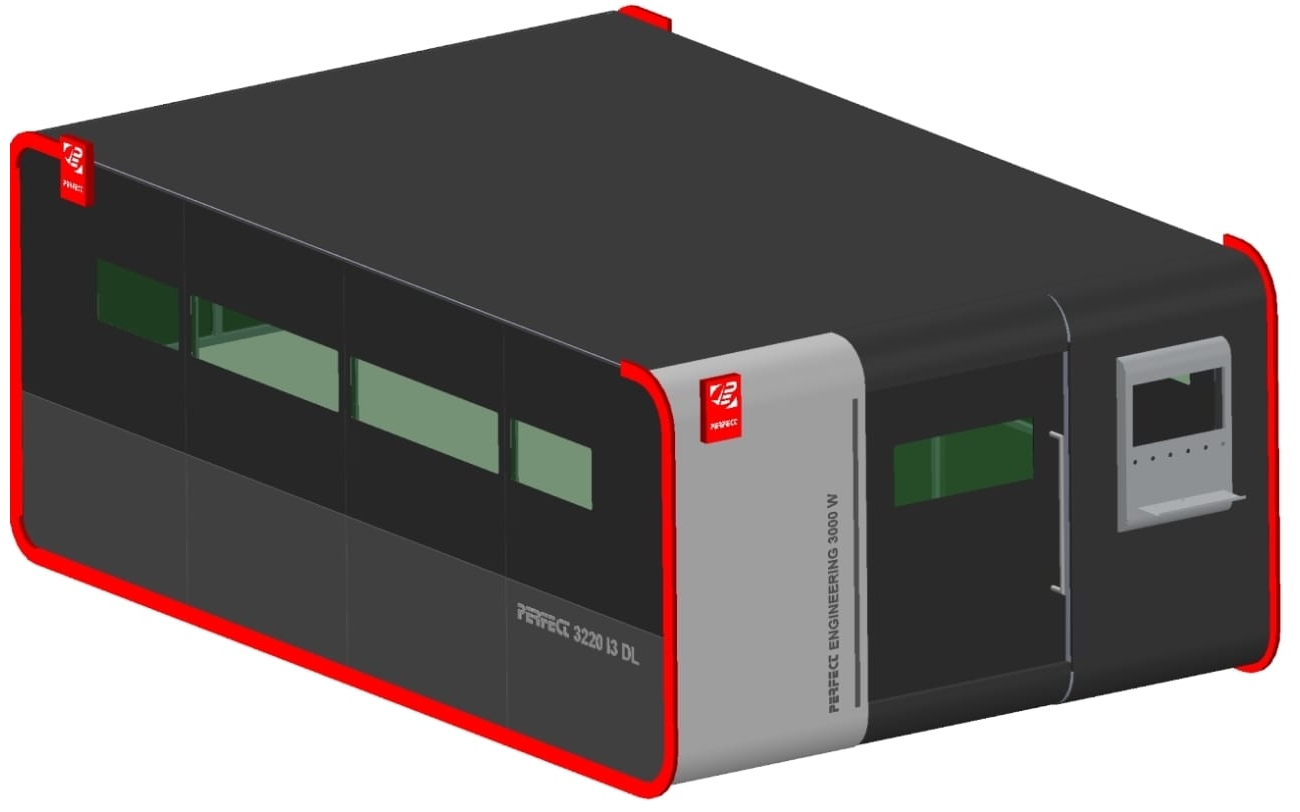

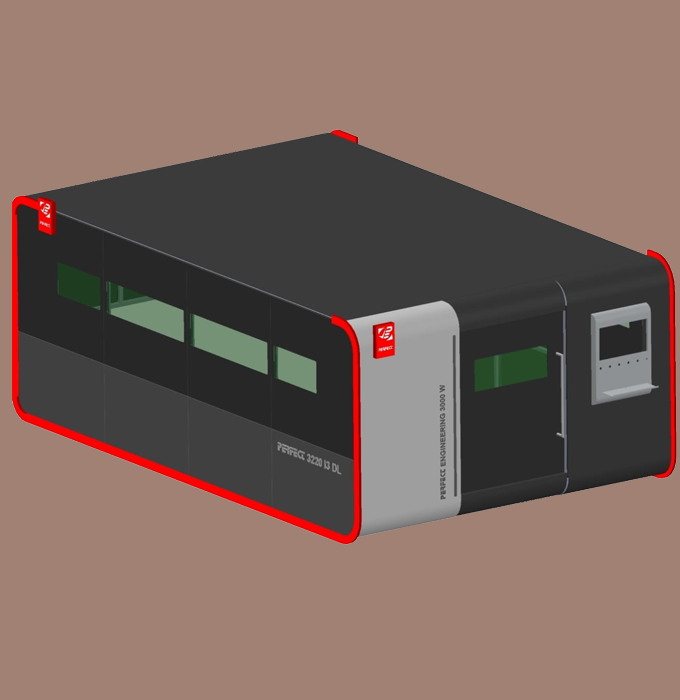

The Laser Cutting Machine is ideal for cutting tasks on various surfaces of metal like MS(Mild Steel), SS(Stainless Steel), Aluminium, GI. This computerised automatic machine delivers precision Cutting at high speed.

Features :

  • We offer both open body and closed body structure
  • The CNC controller is easy to understand and operate.
  • AC Servo motor is mounted with high precision backlash free planetary gearbox
  • Nesting software to minimise plate wastage
  • Uniform gap between the torch and the sheet to avoid collision.
  • Customizable laser head, cutting speed and thickness. Precisely machined and welded for mounting

As a noted CNC Laser Cutting Machine Manufacturers, customer satisfaction is our prime focus. Our laser cutting machines have a modular design to fit into smaller workshops. Every Laser Cutting Machine in Ahmedabad is subjected to a series of tests for quality and safety compliance. Thus, you can trust us to provide you with the best laser cutting solution for your business.

Machine Detail Information
Effective Cutting Length 3200 / 4200 / 6500 / 8000 / 10000 / 12000
Effective Cutting Width 1600 / 2100 / 2500 / 3000
Moving Speed 0-1,10,000 mm/min
Laser Source IPG/Max./Raycus 1KW to 20KW
Cutting Speed Laser According to Source
Cutting Thickness Laser According to Source
CNC System Weihong/CYPCUT
Programming Software Weihong/CYPCUT Auto Nesting Software
Drive Mode Yashkawa - Japan
Servo System Yashkawa - Japan
Gearbox SHimpo 1:7 , ZD Make :-Japan / Motor Reduser Make France
Rack & Pinion Assembly YYC 2 module 2mtr length helical rack Make :- Tiwan
Linear Guide THK ultra high class prison linear guide Make: Japan
Drag Chain Igus fully enclosed Make :-Germany
Installation Including
Warranty 2 YEARS MACHINE AND 2 YERS ON LASER SOURCE
Laser Head Laser According to Source
STRUCTURE Laser Body Structure 2062 Grad Steel Structure With Heat Treatnent Certificate
Consumables 5 set
Pelate exchanger Single / Dual pallet as Per Customer Requirement
Stabilizer & UPS Yes stabilizer ,UPS
